MMACE Paper: Recurrent Neural Network for Predicting Solubility

Hide code cell source
# import os
# os.environ["CUDA_VISIBLE_DEVICES"] = "0"
import pandas as pd
import matplotlib.pyplot as plt
import seaborn as sns
import matplotlib as mpl
import numpy as np
import tensorflow as tf
import selfies as sf
import exmol
from dataclasses import dataclass
from rdkit.Chem.Draw import rdDepictor

rdDepictor.SetPreferCoordGen(True)
sns.set_context("notebook")
sns.set_style(
    "dark",
    {
        "xtick.bottom": True,
        "ytick.left": True,
        "xtick.color": "#666666",
        "ytick.color": "#666666",
        "axes.edgecolor": "#666666",
        "axes.linewidth": 0.8,
        "figure.dpi": 300,
    },
)
color_cycle = ["#1BBC9B", "#F06060", "#5C4B51", "#F3B562", "#6e5687"]
mpl.rcParams["axes.prop_cycle"] = mpl.cycler(color=color_cycle)
soldata = pd.read_csv(
    "https://github.com/whitead/dmol-book/raw/main/data/curated-solubility-dataset.csv"
)
features_start_at = list(soldata.columns).index("MolWt")
np.random.seed(0)
2024-11-22 07:04:24.268688: I external/local_xla/xla/tsl/cuda/cudart_stub.cc:32] Could not find cuda drivers on your machine, GPU will not be used.
2024-11-22 07:04:24.272008: I external/local_xla/xla/tsl/cuda/cudart_stub.cc:32] Could not find cuda drivers on your machine, GPU will not be used.
2024-11-22 07:04:24.280867: E external/local_xla/xla/stream_executor/cuda/cuda_fft.cc:477] Unable to register cuFFT factory: Attempting to register factory for plugin cuFFT when one has already been registered
WARNING: All log messages before absl::InitializeLog() is called are written to STDERR
E0000 00:00:1732259064.295749    2575 cuda_dnn.cc:8310] Unable to register cuDNN factory: Attempting to register factory for plugin cuDNN when one has already been registered
E0000 00:00:1732259064.300043    2575 cuda_blas.cc:1418] Unable to register cuBLAS factory: Attempting to register factory for plugin cuBLAS when one has already been registered
2024-11-22 07:04:24.316196: I tensorflow/core/platform/cpu_feature_guard.cc:210] This TensorFlow binary is optimized to use available CPU instructions in performance-critical operations.
To enable the following instructions: AVX2 FMA, in other operations, rebuild TensorFlow with the appropriate compiler flags.
# REDUCED Data FOR CI
soldata = soldata.sample(frac=0.1, random_state=0).reset_index(drop=True)
soldata.head()
ID Name InChI InChIKey SMILES Solubility SD Ocurrences Group MolWt ... NumRotatableBonds NumValenceElectrons NumAromaticRings NumSaturatedRings NumAliphaticRings RingCount TPSA LabuteASA BalabanJ BertzCT
0 B-4206 diuron InChI=1S/C9H10Cl2N2O/c1-13(2)9(14)12-6-3-4-7(1... XMTQQYYKAHVGBJ-UHFFFAOYSA-N CN(C)C(=O)Nc1ccc(Cl)c(Cl)c1 -3.744300 1.227164 5 G4 233.098 ... 1.0 76.0 1.0 0.0 0.0 1.0 32.34 92.603980 2.781208 352.665233
1 F-988 7-(3-amino-3-methylazetidin-1-yl)-8-chloro-1-c... InChI=1S/C17H17ClFN3O3/c1-17(20)6-21(7-17)14-1... DUNZFXZSFJLIKR-UHFFFAOYSA-N CC1(N)CN(C2=C(Cl)C3=C(C=C2F)C(=O)C(C(=O)O)=CN3... -5.330000 0.000000 1 G1 365.792 ... 3.0 132.0 2.0 2.0 2.0 4.0 88.56 147.136366 2.001398 973.487509
2 C-1996 4-acetoxybiphenyl; 4-biphenylyl acetate InChI=1S/C14H12O2/c1-11(15)16-14-9-7-13(8-10-1... MISFQCBPASYYGV-UHFFFAOYSA-N CC(=O)OC1=CC=C(C=C1)C2=CC=CC=C2 -4.400000 0.000000 1 G1 212.248 ... 2.0 80.0 2.0 0.0 0.0 2.0 26.30 94.493449 2.228677 471.848345
3 A-3055 methane dimolybdenum InChI=1S/CH4.2Mo/h1H4;; JAGQSESDQXCFCH-UHFFFAOYSA-N C.[Mo].[Mo] -3.420275 0.409223 2 G3 207.923 ... 0.0 20.0 0.0 0.0 0.0 0.0 0.00 49.515427 -0.000000 2.754888
4 A-2575 ethyl 4-[[(methylphenylamino)methylene]amino]b... InChI=1S/C17H18N2O2/c1-3-21-17(20)14-9-11-15(1... GNGYPJUKIKDJQT-UHFFFAOYSA-N CCOC(=O)c1ccc(cc1)N=CN(C)c2ccccc2 -5.450777 0.000000 1 G1 282.343 ... 5.0 108.0 2.0 0.0 0.0 2.0 41.90 124.243431 2.028889 606.447052

5 rows × 26 columns

selfies_list = []
for s in soldata.SMILES:
    try:
        selfies_list.append(sf.encoder(exmol.sanitize_smiles(s)[1]))
    except sf.EncoderError:
        selfies_list.append(None)
len(selfies_list)
998
basic = set(exmol.get_basic_alphabet())
data_vocab = set(
    sf.get_alphabet_from_selfies([s for s in selfies_list if s is not None])
)
vocab = ["[nop]"]
vocab.extend(list(data_vocab.union(basic)))
vocab_stoi = {o: i for o, i in zip(vocab, range(len(vocab)))}


def selfies2ints(s):
    result = []
    for token in sf.split_selfies(s):
        if token == ".":
            continue  # ?
        if token in vocab_stoi:
            result.append(vocab_stoi[token])
        else:
            result.append(np.nan)
            # print('Warning')
    return result


def ints2selfies(v):
    return "".join([vocab[i] for i in v])


# test them out
s = selfies_list[0]
print("selfies:", s)
v = selfies2ints(s)
print("selfies2ints:", v)
so = ints2selfies(v)
print("ints2selfes:", so)
assert so == s.replace(
    ".", ""
)  # make sure '.' is removed from Selfies string during assertion
selfies: [C][N][Branch1][C][C][C][=Branch1][C][=O][N][C][=C][C][=C][Branch1][C][Cl][C][Branch1][C][Cl][=C][Ring1][Branch2]
selfies2ints: [36, 41, 81, 36, 36, 36, 6, 36, 11, 41, 36, 17, 36, 17, 81, 36, 1, 36, 81, 36, 1, 17, 25, 5]
ints2selfes: [C][N][Branch1][C][C][C][=Branch1][C][=O][N][C][=C][C][=C][Branch1][C][Cl][C][Branch1][C][Cl][=C][Ring1][Branch2]
@dataclass
class Config:
    vocab_size: int
    example_number: int
    batch_size: int
    buffer_size: int
    embedding_dim: int
    rnn_units: int
    hidden_dim: int


config = Config(
    vocab_size=len(vocab),
    example_number=len(selfies_list),
    batch_size=16,
    buffer_size=10000,
    embedding_dim=256,
    hidden_dim=128,
    rnn_units=128,
)
# now get sequences
encoded = [selfies2ints(s) for s in selfies_list if s is not None]
padded_seqs = tf.keras.preprocessing.sequence.pad_sequences(encoded, padding="post")

# Now build dataset
data = tf.data.Dataset.from_tensor_slices(
    (padded_seqs, soldata.Solubility.iloc[[bool(s) for s in selfies_list]].values)
)
# now split into val, test, train and batch
N = len(data)
split = int(0.1 * N)
test_data = data.take(split).batch(config.batch_size)
nontest = data.skip(split)
val_data, train_data = nontest.take(split).batch(config.batch_size), nontest.skip(
    split
).shuffle(config.buffer_size).batch(config.batch_size).prefetch(
    tf.data.experimental.AUTOTUNE
)
2024-11-22 07:04:27.731534: E external/local_xla/xla/stream_executor/cuda/cuda_driver.cc:152] failed call to cuInit: INTERNAL: CUDA error: Failed call to cuInit: UNKNOWN ERROR (303)
model = tf.keras.Sequential()

# make embedding and indicate that 0 should be treated as padding mask
model.add(
    tf.keras.layers.Embedding(
        input_dim=config.vocab_size, output_dim=config.embedding_dim, mask_zero=True
    )
)

# RNN layer
model.add(tf.keras.layers.GRU(config.rnn_units))
# a dense hidden layer
model.add(tf.keras.layers.Dense(config.hidden_dim, activation="relu"))
# regression, so no activation
model.add(tf.keras.layers.Dense(1))

model.summary()
Model: "sequential"
┏━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━┳━━━━━━━━━━━━━━━━━━━━━━━━┳━━━━━━━━━━━━━━━┓
┃ Layer (type)                     Output Shape                  Param # ┃
┡━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━╇━━━━━━━━━━━━━━━━━━━━━━━━╇━━━━━━━━━━━━━━━┩
│ embedding (Embedding)           │ ?                      │   0 (unbuilt) │
├─────────────────────────────────┼────────────────────────┼───────────────┤
│ gru (GRU)                       │ ?                      │   0 (unbuilt) │
├─────────────────────────────────┼────────────────────────┼───────────────┤
│ dense (Dense)                   │ ?                      │   0 (unbuilt) │
├─────────────────────────────────┼────────────────────────┼───────────────┤
│ dense_1 (Dense)                 │ ?                      │   0 (unbuilt) │
└─────────────────────────────────┴────────────────────────┴───────────────┘
 Total params: 0 (0.00 B)
 Trainable params: 0 (0.00 B)
 Non-trainable params: 0 (0.00 B)
model.compile(tf.optimizers.Adam(1e-4), loss="mean_squared_error")
result = model.fit(train_data, validation_data=val_data, epochs=100, verbose=0)
plt.plot(result.history["loss"], label="training")
plt.plot(result.history["val_loss"], label="validation")
plt.legend()
plt.xlabel("Epoch")
plt.ylabel("Loss")
plt.show()

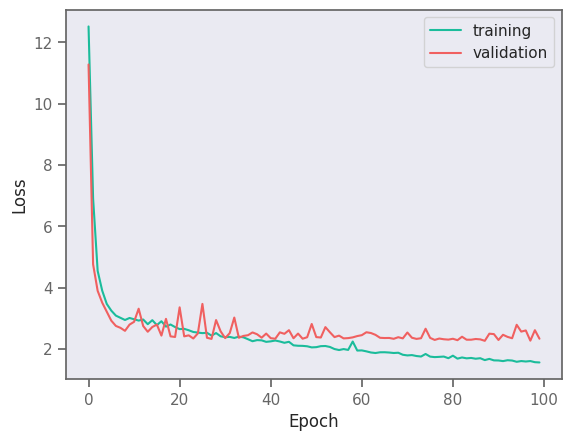

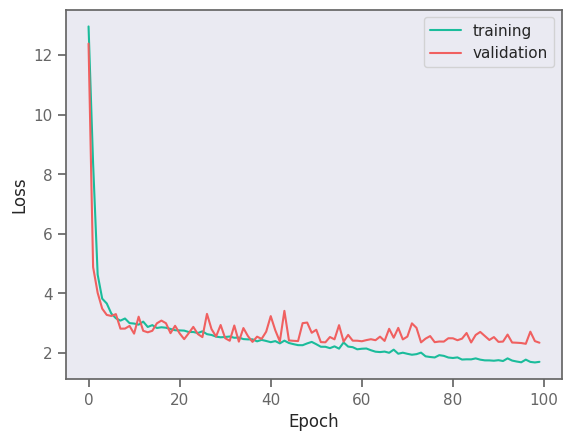

../_images/e6f052657050374547f62fbd3807d43388c1c631e0053acce82b904569f6fc08.png
yhat = []
test_y = []
for x, y in test_data:
    yhat.extend(model(x).numpy().flatten())
    test_y.extend(y.numpy().flatten())
yhat = np.array(yhat)
test_y = np.array(test_y)

# plot test data
plt.plot(test_y, test_y, ":")
plt.plot(test_y, yhat, ".")
plt.text(min(y) - 7, max(y) - 2, f"correlation = {np.corrcoef(test_y, yhat)[0,1]:.3f}")
plt.text(min(y) - 7, max(y) - 3, f"loss = {np.sqrt(np.mean((test_y - yhat)**2)):.3f}")
plt.title("Testing Data")
plt.savefig("rnn-fit.png", dpi=300)
plt.show()
2024-11-22 07:12:00.399203: I tensorflow/core/framework/local_rendezvous.cc:405] Local rendezvous is aborting with status: OUT_OF_RANGE: End of sequence

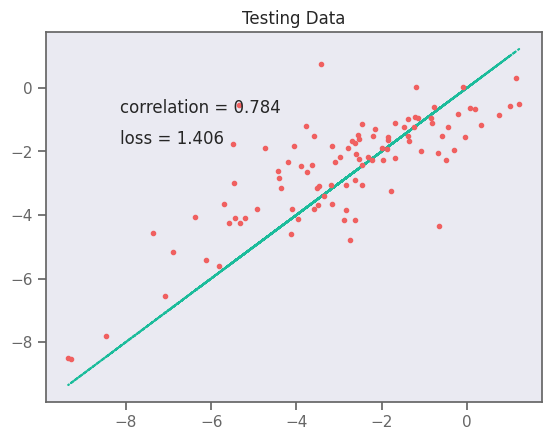

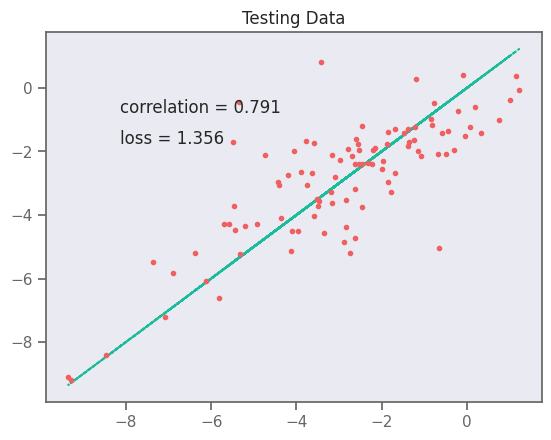

../_images/3c4c7edacc95ebe4f5c1f6b02b685269bdc6cb7f2b79669a18894e83a1cf20f7.png

CF explanation:

In the following example let’s say we would like our molecules to return a solubility value of -3.5. Here we use MMACE algorithm to createcounter factual explanations. In other words, we would like to see what are the minimal mutations that could to be done to our input structure to get our desired solubility.

def predictor_function(smile_list, selfies):
    encoded = [selfies2ints(s) for s in selfies]
    # check for nans
    valid = [1.0 if sum(e) > 0 else np.nan for e in encoded]
    encoded = [np.nan_to_num(e, nan=0) for e in encoded]
    padded_seqs = tf.keras.preprocessing.sequence.pad_sequences(encoded, padding="post")
    labels = np.reshape(model.predict(padded_seqs), (-1))
    return labels * valid
predictor_function([], ["[C][C][O]", "[C][C][Nop][O]"])
1/1 ━━━━━━━━━━━━━━━━━━━━ 0s 157ms/step

1/1 ━━━━━━━━━━━━━━━━━━━━ 0s 158ms/step
array([0.58667541,        nan])
stoned_kwargs = {
    "num_samples": 2500,
    "alphabet": exmol.get_basic_alphabet(),
    "max_mutations": 2,
}
space = exmol.sample_space(
    soldata.SMILES[4], predictor_function, stoned_kwargs=stoned_kwargs, quiet=True
)
exps = exmol.rcf_explain(space, 0.5, nmols=4)
1/1 ━━━━━━━━━━━━━━━━━━━━ 0s 174ms/step

1/1 ━━━━━━━━━━━━━━━━━━━━ 0s 175ms/step
 1/65 ━━━━━━━━━━━━━━━━━━━━ 1s 20ms/step

 9/65 ━━━━━━━━━━━━━━━━━━━━ 0s 7ms/step

17/65 ━━━━━━━━━━━━━━━━━━━━ 0s 7ms/step

25/65 ━━━━━━━━━━━━━━━━━━━━ 0s 7ms/step

33/65 ━━━━━━━━━━━━━━━━━━━━ 0s 7ms/step

41/65 ━━━━━━━━━━━━━━━━━━━━ 0s 7ms/step

49/65 ━━━━━━━━━━━━━━━━━━━━ 0s 7ms/step

57/65 ━━━━━━━━━━━━━━━━━━━━ 0s 7ms/step

65/65 ━━━━━━━━━━━━━━━━━━━━ 0s 7ms/step

65/65 ━━━━━━━━━━━━━━━━━━━━ 0s 7ms/step
fkw = {"figsize": (10, 3)}
exmol.plot_cf(exps, figure_kwargs=fkw, mol_size=(450, 400), nrows=1)
plt.savefig("rnn-simple.png", bbox_inches="tight", dpi=180)
svg = exmol.insert_svg(exps, mol_fontsize=16)
with open("rnn-simple.svg", "w") as f:
    f.write(svg)

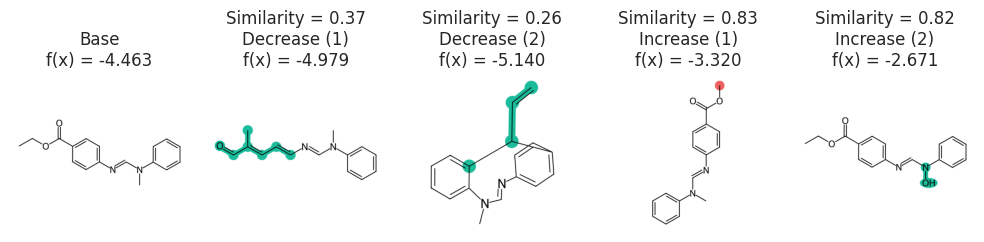

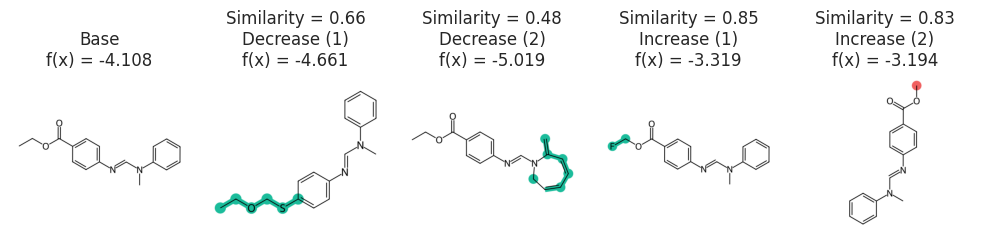

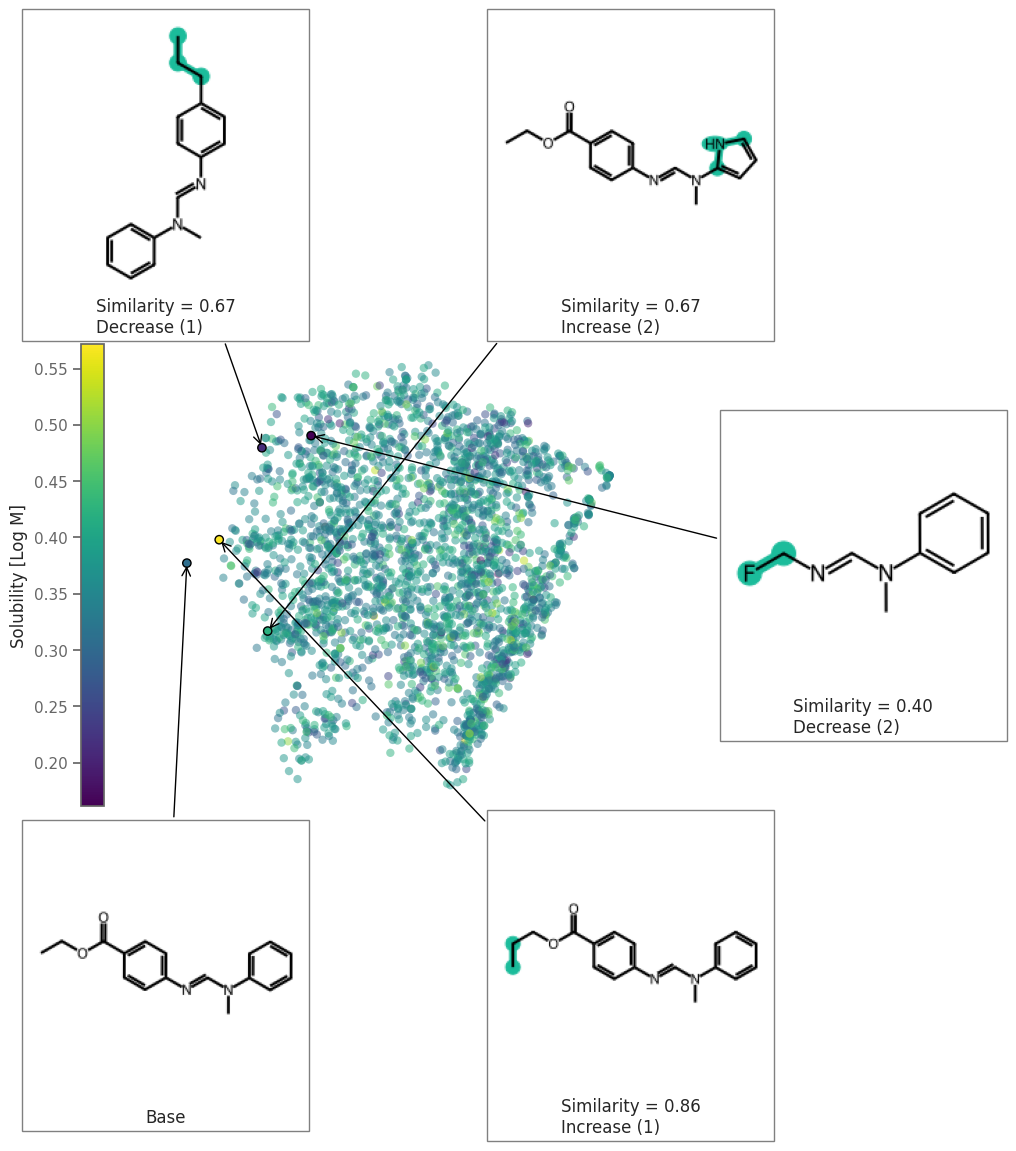

../_images/fbf8d5b5a2be7df1487c998447f9d4a021071383943e1150fce88fe081b4cc09.png
fkw = {"figsize": (10, 4)}
font = {"family": "normal", "weight": "normal", "size": 22}

exmol.plot_space(space, exps, figure_kwargs=fkw, mol_size=(100, 100), offset=1)
ax = plt.gca()
plt.colorbar(
    ax.get_children()[1],
    ax=[ax],
    label="Solubility [Log M]",
    location="left",
    shrink=0.8,
)
plt.savefig("rnn-space.png", bbox_inches="tight", dpi=180)
svg = exmol.insert_svg(exps, mol_fontsize=16)
with open("svg_figs/rnn-space.svg", "w") as f:
    f.write(svg)

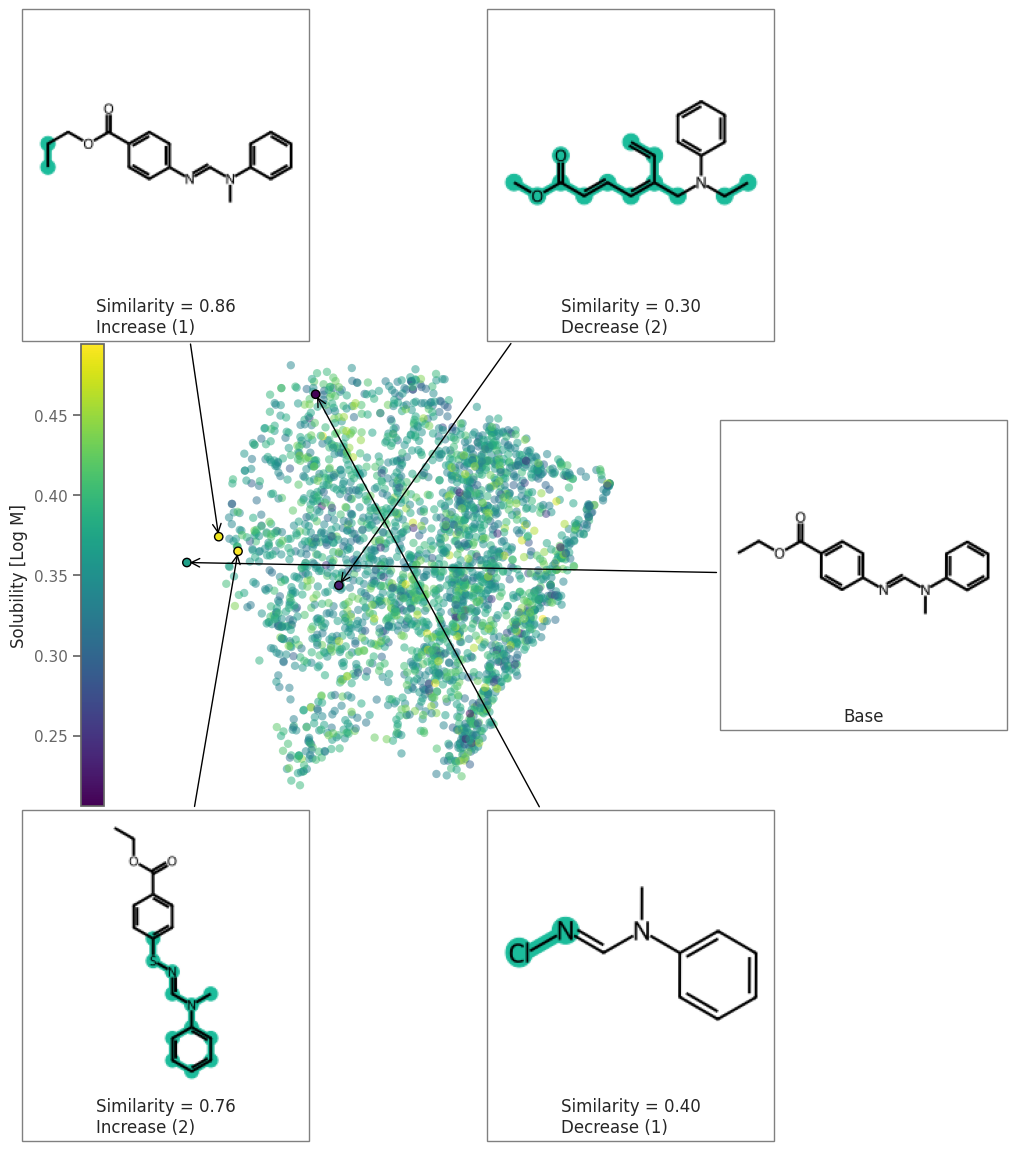

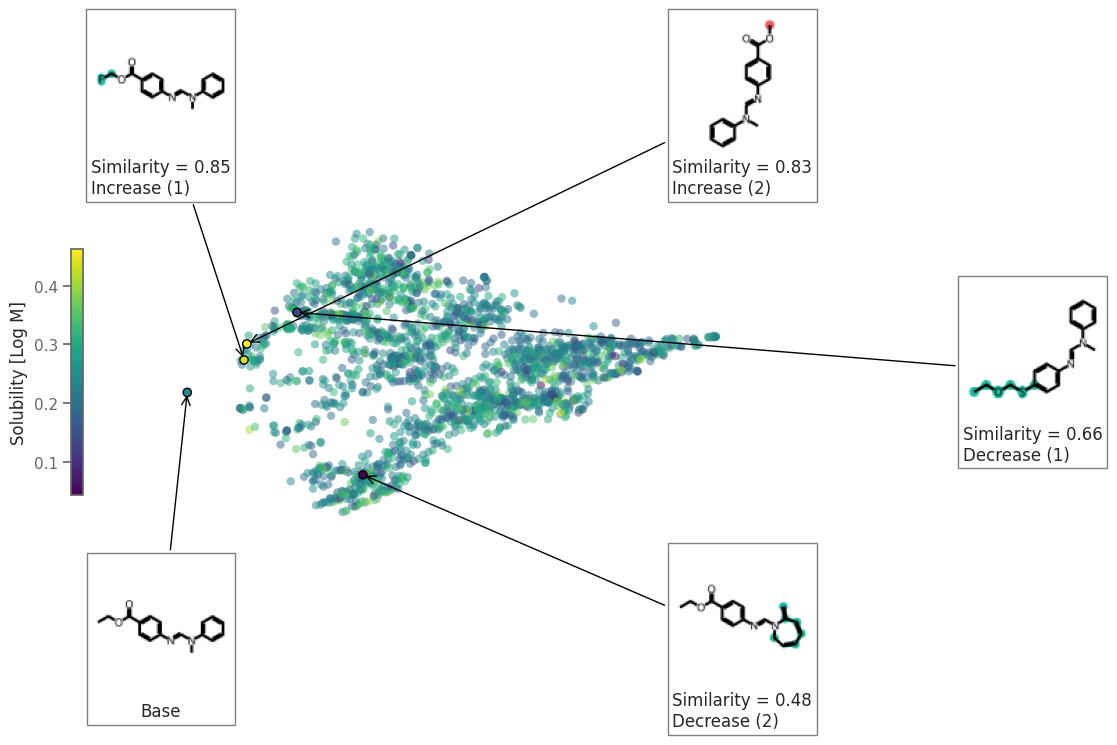

../_images/6751d96806e3f464705b8af98c0c8094fd82fc0415bf5676f10a61b110fed17a.png
space = exmol.sample_space(
    soldata.SMILES[4], predictor_function, preset="wide", quiet=True
)
exps = exmol.rcf_explain(space, 0.5)
1/1 ━━━━━━━━━━━━━━━━━━━━ 0s 14ms/step

1/1 ━━━━━━━━━━━━━━━━━━━━ 0s 15ms/step
 1/83 ━━━━━━━━━━━━━━━━━━━━ 1s 20ms/step

 9/83 ━━━━━━━━━━━━━━━━━━━━ 0s 7ms/step

17/83 ━━━━━━━━━━━━━━━━━━━━ 0s 7ms/step

25/83 ━━━━━━━━━━━━━━━━━━━━ 0s 7ms/step

33/83 ━━━━━━━━━━━━━━━━━━━━ 0s 7ms/step

41/83 ━━━━━━━━━━━━━━━━━━━━ 0s 7ms/step

49/83 ━━━━━━━━━━━━━━━━━━━━ 0s 7ms/step

57/83 ━━━━━━━━━━━━━━━━━━━━ 0s 7ms/step

65/83 ━━━━━━━━━━━━━━━━━━━━ 0s 7ms/step

73/83 ━━━━━━━━━━━━━━━━━━━━ 0s 7ms/step

81/83 ━━━━━━━━━━━━━━━━━━━ 0s 7ms/step

83/83 ━━━━━━━━━━━━━━━━━━━━ 1s 7ms/step
fkw = {"figsize": (8, 6)}
font = {"family": "normal", "weight": "normal", "size": 22}


exmol.plot_space(space, exps, figure_kwargs=fkw, mol_size=(200, 200), offset=1)
ax = plt.gca()
plt.colorbar(ax.get_children()[1], ax=[ax], location="left", label="Solubility [Log M]")
plt.savefig("rnn-wide.png", bbox_inches="tight", dpi=180)
svg = exmol.insert_svg(exps, mol_fontsize=16)
with open("rnn-space-wide.svg", "w") as f:
    f.write(svg)

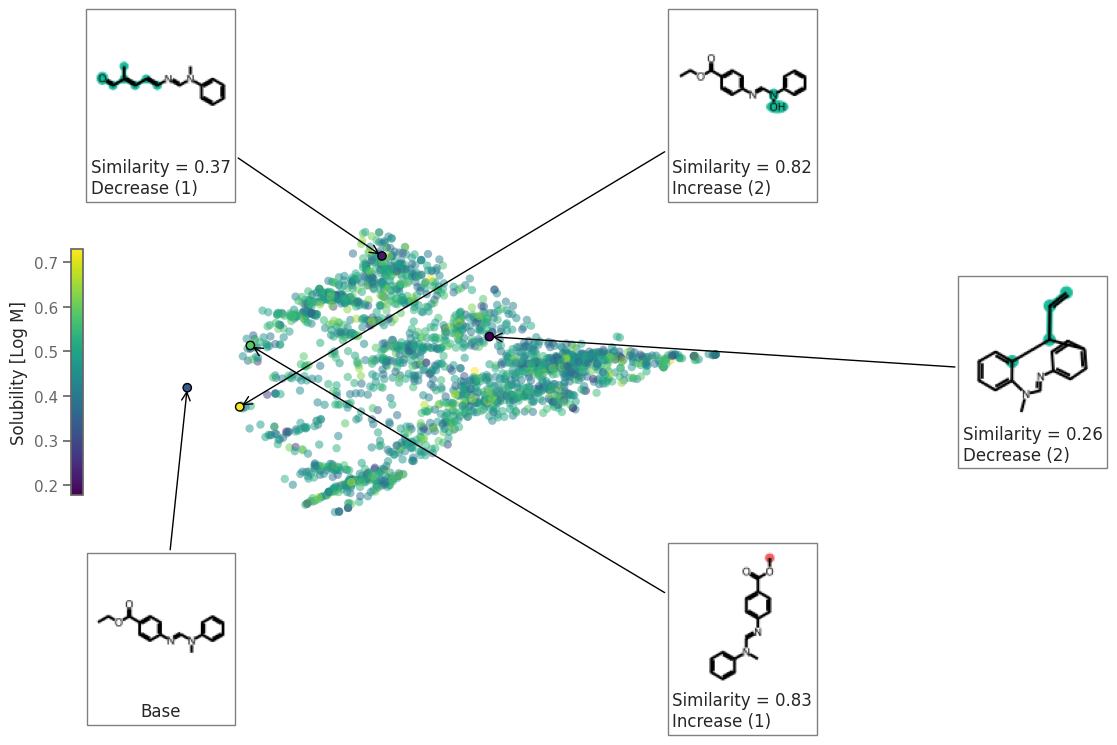

../_images/4a12e824802783dff1c1a33edfa4c144d66238d6294f565ee0b4257c3a32920b.png

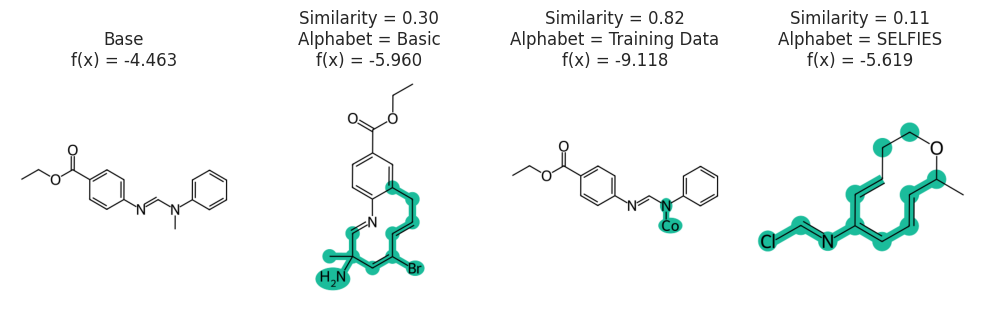

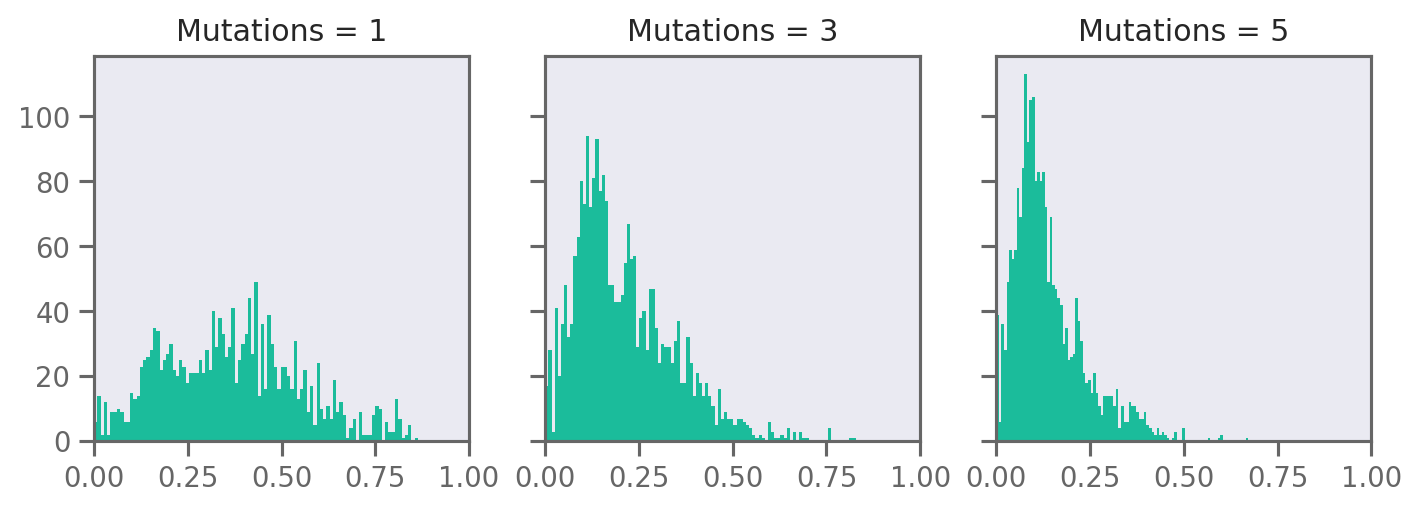

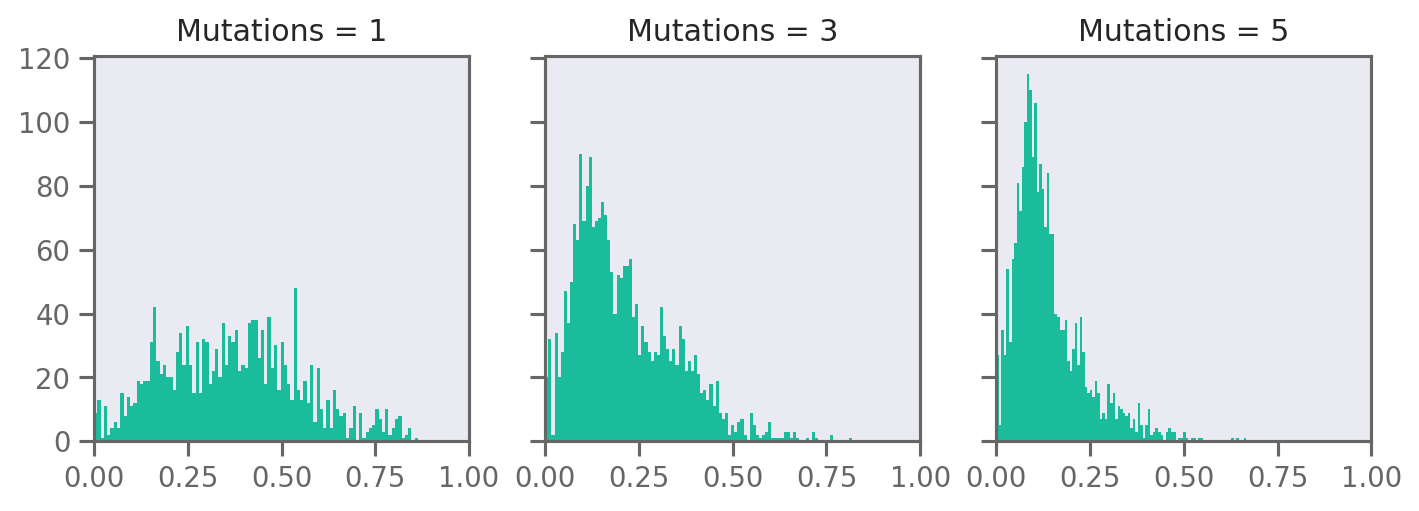

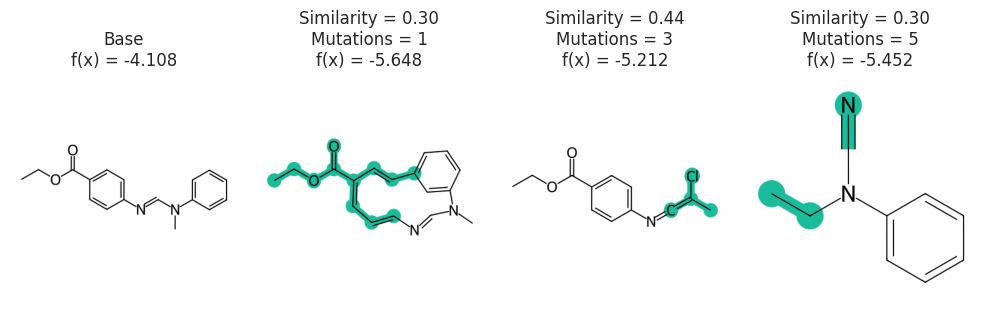

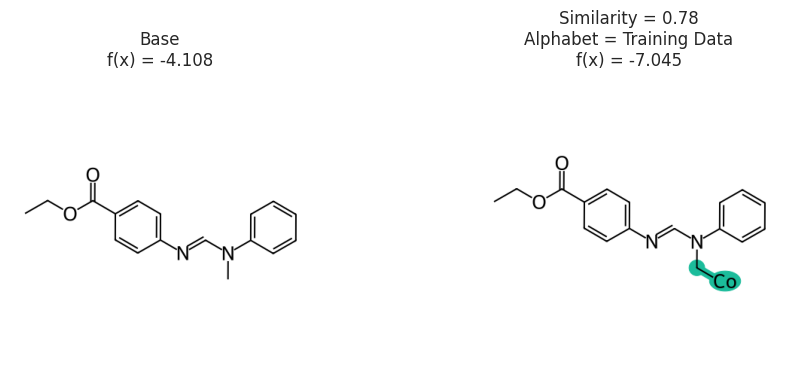

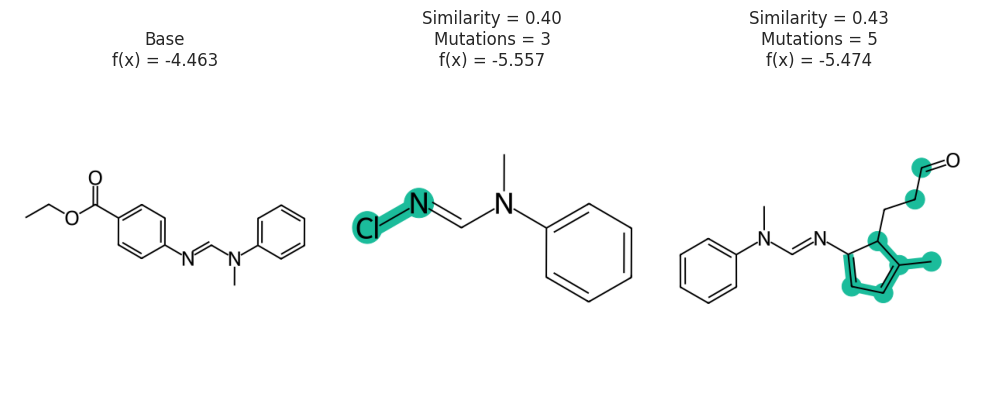

Figure showing effect of mutation number and Alphabet

exps = []
spaces = []
for i in [1, 3, 5]:
    stoned_kwargs = {
        "num_samples": 2500,
        "alphabet": exmol.get_basic_alphabet(),
        "min_mutations": i,
        "max_mutations": i,
    }
    space = exmol.sample_space(
        soldata.SMILES[4], predictor_function, stoned_kwargs=stoned_kwargs, quiet=True
    )
    spaces.append(space)
    e = exmol.rcf_explain(space, nmols=2)
    if len(exps) == 0:
        exps.append(e[0])
    for ei in e:
        if not ei.is_origin and "Decrease" in ei.label:
            ei.label = f"Mutations = {i}"
            exps.append(ei)
            break
1/1 ━━━━━━━━━━━━━━━━━━━━ 0s 14ms/step

1/1 ━━━━━━━━━━━━━━━━━━━━ 0s 15ms/step
 1/53 ━━━━━━━━━━━━━━━━━━━━ 0s 19ms/step

10/53 ━━━━━━━━━━━━━━━━━━━━ 0s 6ms/step

19/53 ━━━━━━━━━━━━━━━━━━━━ 0s 6ms/step

28/53 ━━━━━━━━━━━━━━━━━━━━ 0s 6ms/step

37/53 ━━━━━━━━━━━━━━━━━━━━ 0s 6ms/step

45/53 ━━━━━━━━━━━━━━━━━━━━ 0s 6ms/step

53/53 ━━━━━━━━━━━━━━━━━━━━ 0s 6ms/step
1/1 ━━━━━━━━━━━━━━━━━━━━ 0s 15ms/step

1/1 ━━━━━━━━━━━━━━━━━━━━ 0s 16ms/step
 1/74 ━━━━━━━━━━━━━━━━━━━━ 1s 20ms/step

 9/74 ━━━━━━━━━━━━━━━━━━━━ 0s 7ms/step

17/74 ━━━━━━━━━━━━━━━━━━━━ 0s 7ms/step

24/74 ━━━━━━━━━━━━━━━━━━━━ 0s 7ms/step

32/74 ━━━━━━━━━━━━━━━━━━━━ 0s 7ms/step

40/74 ━━━━━━━━━━━━━━━━━━━━ 0s 7ms/step

48/74 ━━━━━━━━━━━━━━━━━━━━ 0s 7ms/step

56/74 ━━━━━━━━━━━━━━━━━━━━ 0s 7ms/step

64/74 ━━━━━━━━━━━━━━━━━━━━ 0s 7ms/step

72/74 ━━━━━━━━━━━━━━━━━━━ 0s 7ms/step

74/74 ━━━━━━━━━━━━━━━━━━━━ 0s 7ms/step
1/1 ━━━━━━━━━━━━━━━━━━━━ 0s 15ms/step

1/1 ━━━━━━━━━━━━━━━━━━━━ 0s 16ms/step
 1/72 ━━━━━━━━━━━━━━━━━━━━ 1s 19ms/step

 9/72 ━━━━━━━━━━━━━━━━━━━━ 0s 7ms/step

17/72 ━━━━━━━━━━━━━━━━━━━━ 0s 7ms/step

25/72 ━━━━━━━━━━━━━━━━━━━━ 0s 7ms/step

33/72 ━━━━━━━━━━━━━━━━━━━━ 0s 7ms/step

41/72 ━━━━━━━━━━━━━━━━━━━━ 0s 7ms/step

49/72 ━━━━━━━━━━━━━━━━━━━━ 0s 7ms/step

57/72 ━━━━━━━━━━━━━━━━━━━━ 0s 7ms/step

65/72 ━━━━━━━━━━━━━━━━━━━━ 0s 7ms/step

72/72 ━━━━━━━━━━━━━━━━━━━━ 0s 7ms/step
fkw = {"figsize": (10, 4)}
exmol.plot_cf(exps, figure_kwargs=fkw, mol_fontsize=26, mol_size=(400, 400), nrows=1)
plt.savefig("rnn-mutations.png", bbox_inches="tight", dpi=180)
svg = exmol.insert_svg(exps, mol_fontsize=16)
with open("rnn-mutations.svg", "w") as f:
    f.write(svg)
../_images/c2fc5059fbaa463eabec4bf5c7c02f3d6882aba60b2807c00805ca1c5178ea87.png
fig, axs = plt.subplots(1, 3, figsize=(8, 3), dpi=180, squeeze=True, sharey=True)
for i, n in enumerate([1, 3, 5]):
    axs[i].hist([e.similarity for e in spaces[i][1:]], bins=99, edgecolor="none")
    axs[i].set_title(f"Mutations = {n}")
    axs[i].set_xlim(0, 1)
plt.tight_layout()
plt.savefig("rnn-mutation-hist.png", bbox_inches="tight", dpi=180)
../_images/7fa5e1203c4e46490a288ba1d4b167fd48c9c9392f34b43558e3f094cb4e3fce.png
basic = exmol.get_basic_alphabet()
train = sf.get_alphabet_from_selfies([s for s in selfies_list if s is not None])
wide = sf.get_semantic_robust_alphabet()

alphs = {"Basic": basic, "Training Data": train, "SELFIES": wide}

exps = []
for l, a in alphs.items():
    stoned_kwargs = {"num_samples": 2500 // 2, "alphabet": a, "max_mutations": 2}
    space = exmol.sample_space(
        soldata.SMILES[4], predictor_function, stoned_kwargs=stoned_kwargs, quiet=True
    )
    e = exmol.rcf_explain(space, nmols=2)
    if len(exps) == 0:
        exps.append(e[0])
    for ei in e:
        if not ei.is_origin and "Decrease" in ei.label:
            ei.label = f"Alphabet = {l}"
            exps.append(ei)
            break
1/1 ━━━━━━━━━━━━━━━━━━━━ 0s 15ms/step

1/1 ━━━━━━━━━━━━━━━━━━━━ 0s 16ms/step
 1/34 ━━━━━━━━━━━━━━━━━━━━ 0s 18ms/step

 9/34 ━━━━━━━━━━━━━━━━━━━━ 0s 6ms/step

17/34 ━━━━━━━━━━━━━━━━━━━━ 0s 6ms/step

25/34 ━━━━━━━━━━━━━━━━━━━━ 0s 6ms/step

33/34 ━━━━━━━━━━━━━━━━━━━ 0s 6ms/step

34/34 ━━━━━━━━━━━━━━━━━━━━ 0s 6ms/step
1/1 ━━━━━━━━━━━━━━━━━━━━ 0s 14ms/step

1/1 ━━━━━━━━━━━━━━━━━━━━ 0s 15ms/step
 1/33 ━━━━━━━━━━━━━━━━━━━━ 0s 18ms/step

 9/33 ━━━━━━━━━━━━━━━━━━━━ 0s 7ms/step

17/33 ━━━━━━━━━━━━━━━━━━━━ 0s 7ms/step

25/33 ━━━━━━━━━━━━━━━━━━━━ 0s 7ms/step

33/33 ━━━━━━━━━━━━━━━━━━━━ 0s 7ms/step

33/33 ━━━━━━━━━━━━━━━━━━━━ 0s 7ms/step
1/1 ━━━━━━━━━━━━━━━━━━━━ 0s 15ms/step

1/1 ━━━━━━━━━━━━━━━━━━━━ 0s 16ms/step
 1/34 ━━━━━━━━━━━━━━━━━━━━ 0s 19ms/step

 9/34 ━━━━━━━━━━━━━━━━━━━━ 0s 6ms/step

17/34 ━━━━━━━━━━━━━━━━━━━━ 0s 6ms/step

25/34 ━━━━━━━━━━━━━━━━━━━━ 0s 6ms/step

33/34 ━━━━━━━━━━━━━━━━━━━ 0s 6ms/step

34/34 ━━━━━━━━━━━━━━━━━━━━ 0s 6ms/step
fkw = {"figsize": (10, 4)}
exmol.plot_cf(exps, figure_kwargs=fkw, mol_fontsize=26, mol_size=(400, 400), nrows=1)
plt.savefig("rnn-alphabets.png", bbox_inches="tight", dpi=180)
svg = exmol.insert_svg(exps, mol_fontsize=16)
../_images/be80967913fb733da39a1e60697d652b9ecc657f0b9d48ced25a8c090f21712a.png
